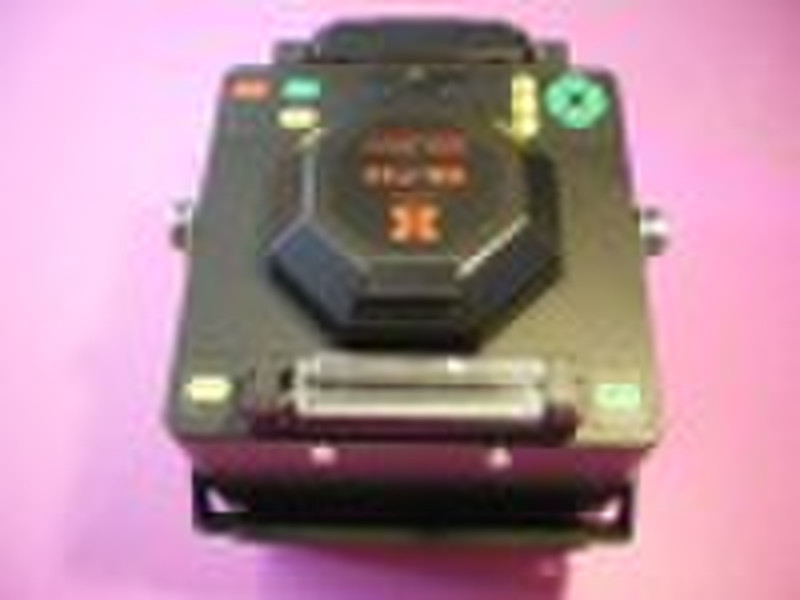

Fiber Optic Fusion Splicer

Fiber Optic Fusion Splicer XB-730 Features 1) 5.0 Color LCD monitor & 256 magnification 2) Compact & Light weight 3) Reversible monitor with control panel on each side 4) Max. wind velocity of 15m/s. 5) 8 Sec. splice time, 40 Sec. tube-heat time 6)Simultaneous X and Y views 7)Large capacity internal battery 8)SYSTEM TEST ensures the best working condition 9)User programmable 10)Auto check fiber end face 11)Auto calibrate parameters 12)Store 8000 groups of splice results 13)Multiple language options 14)8 Kind of Language options: English, Korean, Russian, Portuguese, French, Spanish, German, ChineseSpecificationsApplicable fibers:SMMMDSNZ-DSEDFCladding diameter:100 to 150umCoating diameter:100 to 1000umFiber cleaved length:8-22mm (standard)Splicing mode:Auto & ManualAverage splice loss:0.02dB(SM)0.01dB(MM)0.04dB(DS)0.04dB(NZDS)Return loss:≥ 60dBEnvironmentconditions:-2550 (operation temperature), 095%RH (humidity), 05000m (altitude)Storage environment:-40 +80 (temperature) , 095RH (humidity)Protectionsleevelength:20mm 40mm 60mmTension test:2.0N (Standard)Language:English, Chinese, Korean, Russian,Spanish etc.Interface:RS232 interface & video outputPower supply:AC adaptor 85260V input voltageInternal battery12V voltage, 10Ah, more than 200 times of continuous splices and heatsDC adaptor12V voltage,optional multipurpose external batteryDimensions: 170W×140H×170DmmWeight:3.3kgStandard Package Fusion SplicerAC adapterAC power cordInternal batteryChargerSpare electrodeCooling trayManual instructionCarry caseFiber cleaverFiber stripperFusion SplicerItem NO.-------------------------------------- XB-730 Fusion Splicer Size---------------------------------------------17x 14 x 17 cm Product Weight------------------------------3.3Kg Package Size--------------------------------50 x 32 x 42 cm
