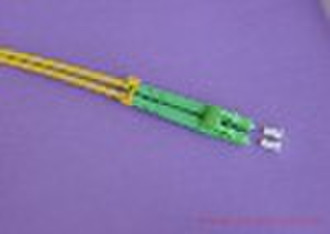

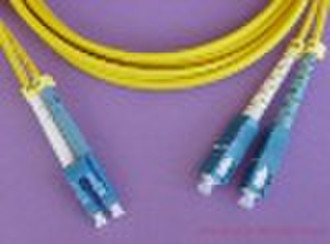

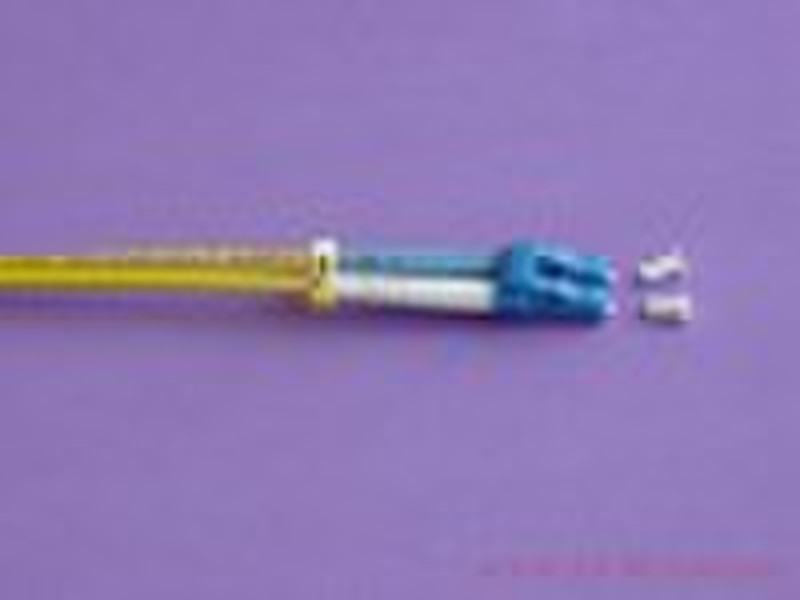

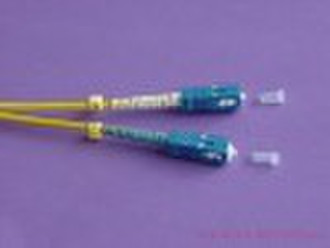

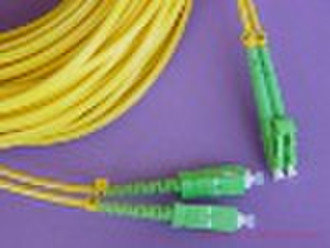

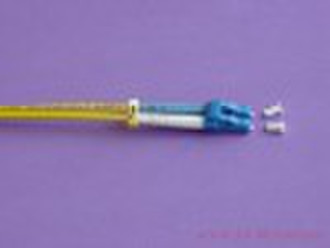

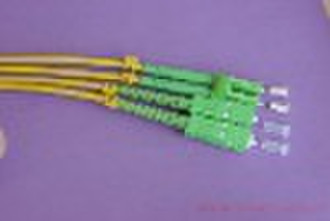

Fiber optic patch cord

Fiber Optic Patch Cord LC/SC/FC/ST/E2000 Features:---Low insertion loss and back reflection loss---Good exchangeability---Good durability---High temperature stability---Standard: Telcordia GR-326-COREApplications:Gigabit Ethernet; Active device termination; Telecommunication networks; Video; Multimedia; Premise installations;LC Fiber Optic Patch CordParameter table: DescriptionsSM(PC)SM(APC)MM(PC)Insertion loss<0.3dB<0.3dB<0.3dBReturn loss≥50dB≥65dB≥35dBRepeatability≤0.1≤0.1≤0.1Durability<0.1dB typical change,1000 matingInterchangeability≤0.2dBOperating Temperature- 40 to + 80 SC Fiber Optic Patch CordParameter table:DescriptionsSM(PC)SM(APC)MM(PC)Insertion loss<0.3dB<0.3dB<0.3dBReturn loss≥50dB≥65dB≥35dBRepeatability≤0.1≤0.1≤0.1Durability<0.1dB typical change,1000 matingInterchangeability≤0.2dBOperating Temperature- 40 to + 80 FC Fiber Optic Patch CordParameter table:DescriptionsSM(PC)SM(APC)MM(PC)Insertion loss<0.3dB<0.3dB<0.3dBReturn loss≥50dB≥60dB≥35dBRepeatability≤0.1≤0.1≤0.1Durability<0.1dB typical change,1000 matingInterchangeability≤0.2dBOperating Temperature- 40 to + 80 ST Fiber Optic Patch CordParameter table:DescriptionsSM(PC)SM(APC)MM(PC)Insertion loss<0.3dB<0.3dB<0.3dBReturn loss≥50dB≥60dB≥35dBRepeatability≤0.1≤0.1≤0.1Durability<0.1dB typical change,1000 matingInterchangeability≤0.2dBOperating Temperature- 40 to + 80 E2000 Fiber Optic Patch Cord Parameter table:DescriptionsSM(PC)SM(APC)MM(PC)Insertion loss<0.3dB<0.3dB<0.3dBReturn loss≥50dB≥65dB≥35dBRepeatability≤0.1≤0.1≤0.1Strain relief40NDurability<0.1dB typical change,1000 matingInterchangeability≤0.2dBOperating Temperature- 40 to + 80Assembly procedureGlue and polishLocal mechanismSpot-onStandardsEN 186-270Connector materialUL 94-V0 Ordering Choices:Fan-out patch cordSimplex/Duplex patch cordPigtailsVarious boot (cable) sizesVarious boot color
